- Road Bikes

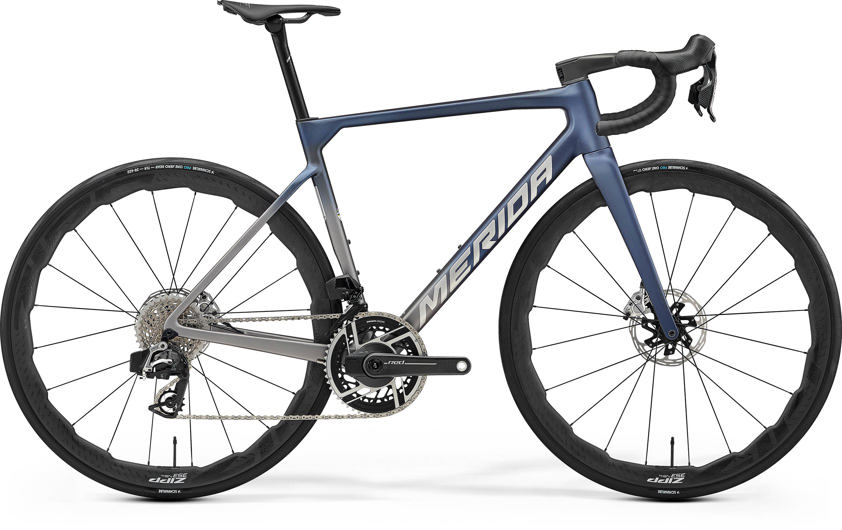

- Scultura 10K - Silk Blue/Grey (Flash Bcp) - MY26
Test
- If only the best is good enough and you value aerodynamic efficiency, low weight, race-proven geometry and class-leading comfort then our test-winning Scultura could be the perfect choice for you. The CF5 frame is not just super light but also benefitted a lot from our new Reacto aerodynamic design and has been the focus of lots of effort to make it the most comfortable pure road race bike in our history.
- Frame: CF5 V carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 142 x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2 to 1 1/4 headtube. Pressfit 86.5 BB Standard, Max tyre size - 30c
- Fork: Scultura CF5 Disc; material: carbon; 700x30C max. tyre size
- Headset: Merida Team SL (OP-203 neck)
- Stem: Merida Team One-Piece Integrated; material: carbon; Length: (XXXS-XS) - 90mm, S - 100mm, (M-L) - 110mm, XL - 120mm
- Handlebar: Merida Team SL 1P Integrated; material: carbon; (XXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide
- Grip: Merida Road Expert
- Brake Type: Hydraulic Disc
- Brake Lever: SRAM Red AXS
- Brake Calipers: Front: SRAM Red AXS; Hydraulic disc with SRAM Paceline X Centerlock; 160mm Rear: SRAM Red AXS; Hydraulic disc with SRAM Paceline X Centerlock; 160mm
- Tyres: Front: Schwalbe Pro One Aero, Super Race, RaceGuard, 700x28C, Rear: Schwalbe Pro One Aero, Super Race, RaceGuard, 700x28C,
- Wheel Size: 700c
- Wheels: Rims: Zipp WH-353-NSW Tubeless; 12x100mm; 12x142mm; 25mmmm inner rim width; Centerlock; SRAM xdr; Carbon Spokes: Part of wheelset - Zipp WH-353-NSW Tubeless Front Hub: Part of wheelset - Zipp WH-353-NSW Tubeless Rear Hub: Part of wheelest - Zipp WH-353-NSW Tubeless
- Speeds: 24
- Front Derailleur: SRAM Red AXS
- Rear Derailleur: SRAM Red AXS E1
- Shift Levers: Front: SRAM Red AXS , Rear: SRAM Red AXS
- Chain: SRAM Red E1
- Cassette: SRAM XG 1290 E1; 10-36 teeth; 12 speed
- Chainset: SRAM Red AXS; 50-37 tooth chainset; Power Meter; Crank length: XXXS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
- Bottom Bracket: SRAM Pressfit Dub; Pressfit 86.5
- Pedals: Not included
- Saddle: Prologo Nago R4 PAS; Nack
- Seat Post: Metron RS Seatpost; 27.2mm diameter; in-line; material: carbon
