- Road Bikes

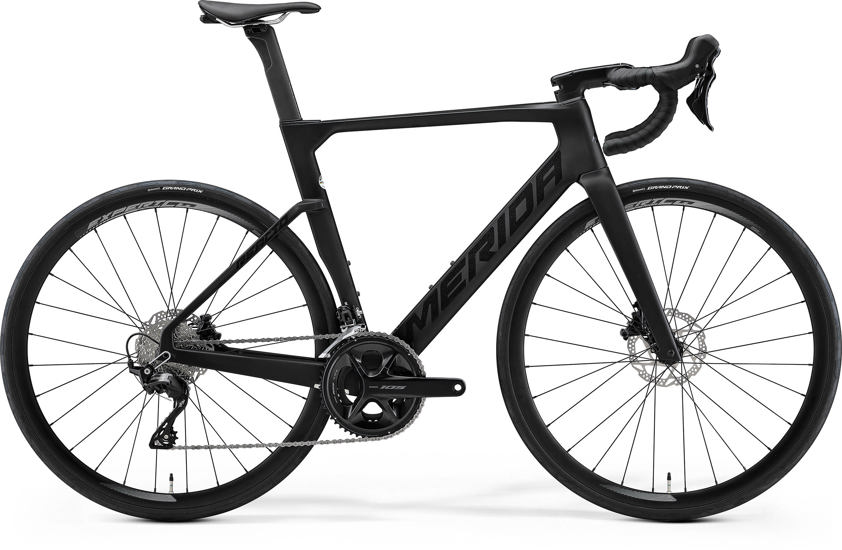

- reacto 4000 - silk black (glossy dark silver) - my26
- The Reacto has always been a class leading aero bike, combining state of the art aerodynamics with rider comfort. The latest generation incorporated wider tyres for increased comfort, but adding wider tyres resulted in aerodynamic compromises so a myriad of small improvements were required to over-compensate. In the World Tour no area can be ignored. Computational Fluid Dynamics (CFD) was used to model virtual wind tunnel performance, guiding the changes which offered the most aerodynamic benefit: Tiny details like integrating the front Disc Cooler behind the fork and the rear disc caliper in the rear triangle and creating new bolt through axles with the thread integrated into the fork dropout minimise drag and improve aerodynamic performance. The Reacto CF5 needs just 209 watts effort for 45 km/h speed, All Reacto have powerful hydraulic disc brakes with chainstay mounted calipers for better brake force dissipation. The flat mount standard keeps everything neat whilst sitting calipers on CNC'd aluminium Disc Cooler fins helps reduce operating temperatures by up to 35%. Cycling Weekly described it as 'without doubt one of the most complete bikes available on the market', Cyclingnews 'an utterly brilliant and faultless machine' and Cycling Plus were 'hugely impressed'.
- Frame: CF3 IV - carbon with the same geometry and aeroydanmic profiling as the CF5 IV with a more budget friendly carbon lay up. Tapered headtube, Disc Cooler, BB86 BB standard,142 x12mm axle standard. Max tyre size 700 x 30c
- Fork: Reacto CF3 IV Disc; material: carbon; 700x30C max. tyre size
- Headset: Merida Team SL (OP-203 neck)
- Stem: Merida Expert SL 2PII; material: aluminium; -9 degree rise; Length: (XXXS-XS) - 90mm, S - 100mm, (M-L) - 110mm, XL - 120mm
- Handlebar: Merida Expert CW; material: aluminium; (XXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide
- Grip: Merida Road Expert
- Brake Type: Hydraulic Disc
- Brake Lever: Shimano 105
- Brake Calipers: Front: Shimano 105; Hydraulic disc with Shimano RT54; 160mm Rear: Shimano 105; Hydraulic disc with Shimano RT54; 160mm
- Tyres: Front: Continental Grand Prix; 700x28C; kevlar bead Rear: Continental Grand Prix; 700x28C; kevlar bead
- Wheel Size: 700c
- Wheels: Rims: Merida Expert CW; 19mm inner rim width; 30mm rim depth Spokes: Double Butted Black stainless Front Hub: Shimano HB-TC500; 100x12mm; 28 Spoke; Centerlock Rear Hub: Shimano FH-TC500-HL; 12-142mm; 28 Spoke; Centerlock
- Speeds: 24
- Front Derailleur: Shimano 105
- Rear Derailleur: Shimano 105; GS
- Shift Levers: Front: Shimano 105 disc, Rear: Shimano 105 disc
- Chain: Shimano M6100-12
- Cassette: Shimano 105 R7101; 11-34 teeth; 12 speed
- Chainset: Shimano 105 R7100; 52-36 tooth chainset; Crank length: XXXS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
- Bottom Bracket: Shimano SM-BB71-41B; Pressfit 86.5
- Pedals: Not included
- Saddle: Merida Expert SL; 6% recycled and 23% nature material; V-mount; incl. Merida minitool
- Seat Post: Merida Team CW; Aero shape; 15mm layback; material: carbon
