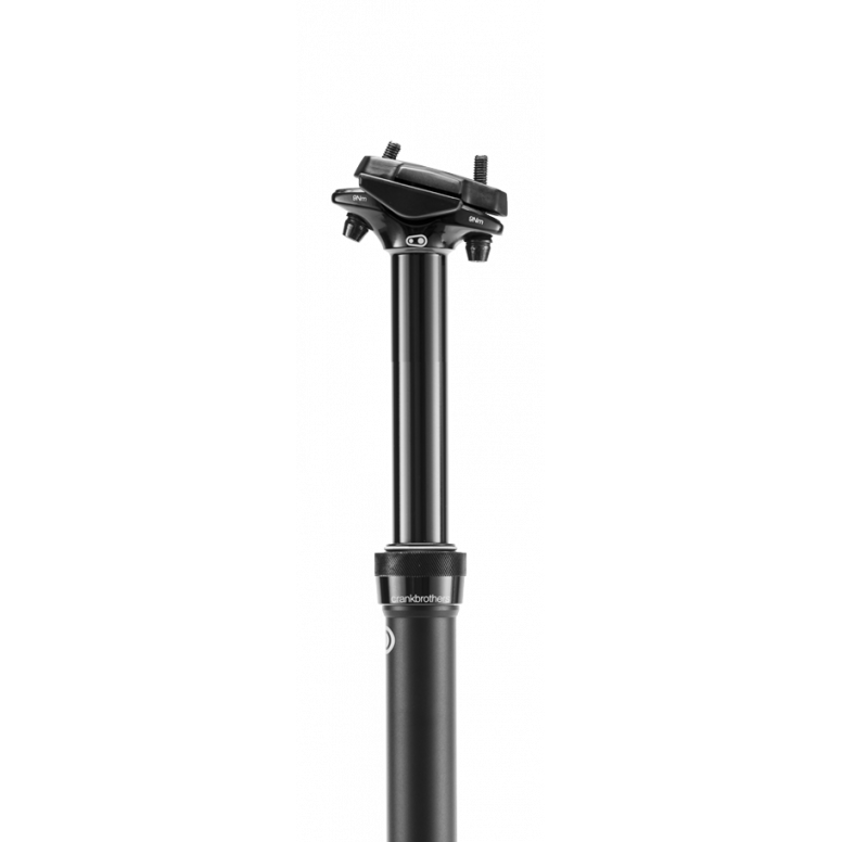

The all-new Highline XC/Gravel delivers infinite adjustment, smooth feel, and easy installation.
- 27.2mm seatpost diameter to fit most XC and gravel bikes
- Jagwire® cable and housing
- Self-contained IFP hydraulic cartridge
- Internal routing
- Quick connect mechanism for ease of cable installation
- Linear actuator for quick return speed
- 2-bolt standard head
Specifications
- Material: 7075-T6 aluminium
- Setback: 0
- Minimum stack height: 60mm
- Warranty 4 years
Specs 60mm;
- Max extended length: 260mm
- Max insertion length: 264mm
- Total post length: 387mm
- Weight: 410g (27.2)
Specs 80mm;
- Max extended length: 280mm
- Max insertion length: 264mm
- Total post length: 407mm
- Weight: 434g (27.2)
Specs 100mm;
- Max extended length: 300mm
- Max insertion length: 264mm
- Total post length: 427mm
- Weight: 459g (27.2)
Specs 125mm;
- Max extended length: 325mm
- Max insertion length: 264mm
- Total post length: 452mm
- Weight: 467g (27.2)
