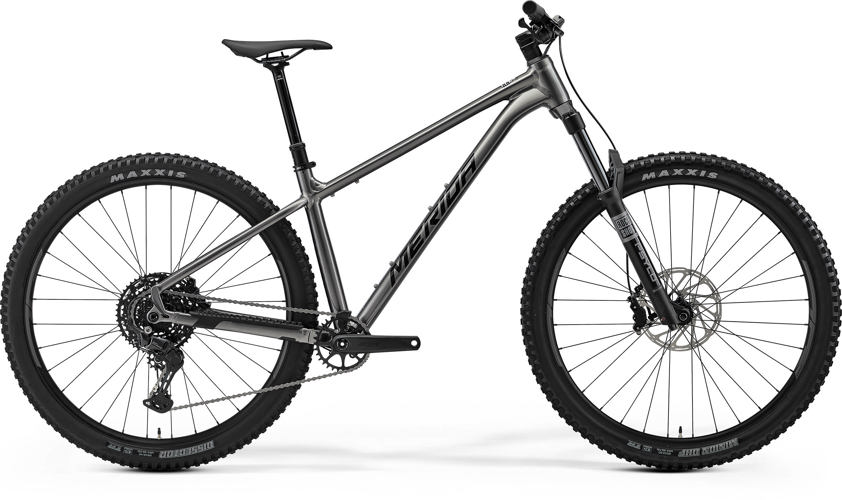

- Big Trail 500 - Gunmetal Grey (Black) - MY26
- The original Big Trail concept was the result of a few UK dealers discussing the ideal UK trail bike with the Merida R&D chief - simple: 140mm air fork, 29 wheels, 1 x transmission and a dropper post. Now in its 2nd iteration Big Trail is a fun-packed and hugely capable trail bike. Its progressive geometry combines a steep 76.5° seat angle with a slack 64.0° head angle giving great climbing characteristics and plenty of stability when the terrain gets steep or rough. Sizing follows the Agilometer principle which means most sizes work for most body sizes so that riding style can be factored in. If you want to go fast, take the longer size, for agility, take a shorter size.
- Frame: TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29 x 2.5
- Fork: RockShox Psylo Silver RC; Air; 140 mm travel; platform
- Headset: Acros ICR Merida External neck; Upper and lower IPS sealing
- Stem: Merida Expert eTRII; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
- Handlebar: Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise
- Grip: Merida Comp TR
- Brake Type: Hydraulic Disc
- Brake Calipers: Front: SRAM DB4; 4 piston with SRAM CenterLine; 200mm Rear: SRAM DB4; 4 piston with SRAM CenterLine; 180mm
- Tyres: Front: Maxxis Minion DHF; 29x2.5; kevlar bead; TR EXO Dual Rear: Maxxis Dissector; 29x2.4; kevlar bead; TR EXO Dual
- Wheel Size: 29
- Wheels: Rims: Merida Comp TR; 29mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included) Spokes: Double Butted Black stainless w/black nipples Front Hub: Shimano TC500-B; 110x15mm; 32 Spoke; Centerlock Rear Hub: Shimano TC500-HM-B; 148x12mm; 32 Spoke; Centerlock
- Speeds: 10
- Rear Derailleur: Shimano CUES U6000; GS
- Shift Levers: Front: Shimano SL-MT500-L, Rear: Shimano CUES U6000
- Chain: KMC xGlide
- Cassette: Shimano LG300; 11-48 teeth; 10 speed
- Chainset: Merida Expert TR II; 32 tooth chainset; Crank length: (XShort-Long) - 165mm, Xlong - 170mm
- Bottom Bracket: Attached
- Pedals: Not included
- Saddle: Merida Comp SL; 25% recycled material; V-mount
- Seat Post: Merida Expert TR II; 34.9mm diameter; in-line; XShort - 150mm, (Short-Mid) - 170mm, Long - 200mm, XLong - 230mm seat post travel
